Features:

1) High Quality:
  1. The whole machine of the lawn mower is made of Q355B low-alloy high-strength steel plate. The fuselage adopts a standard thickness of 4 mm, a yield strength of ≥ 355 megapascals, and an impact energy of ≥ 30 joules at 20°C. It has high strength and good toughness.
  2. The chassis is transverse and vertically reinforced, the tire flange is made of 40Cr material, the precision processing error does not exceed 0.02 mm, and the chassis can carry 160Kg to ensure that the fuselage is never deformed.

2) Unique mowing system:
  Adopts the uniquely developed VODEXS anti-hard material cutting system with ultra-wear-resistant manganese blades. Optional four-blade diamond cutting knives, each cut knife is secured with pins and anti-loosening screws, and the blades are secured with double-layer anti-loosening plates to ensure they do not fall.

3) Reasonable line layout:                                                                                                                                                  The whole machine uses brass metal waterproof plug, battery powered by high quality silicone oxygen-free copper wire, extra circuit protection fuse and control cabin cooling system, which fully protects every motor component of the equipment,

4) High Efficiency Relay:
  1. Strong magnetic arc extinction technology is used to achieve efficient arc suppression.
  2. Silver alloy contacts that do not oxidize or stick to the metal, which have excellent conductivity and resistance to arc corrosion.
  3. The best enameled copper wire is used, which can provide stable current and voltage to ensure the overall stable power supply.

5) Efficient:                                                                                                                                                                 The maximum travel speed can reach 6 km/h. The remote control lawn mower operates 16 times more efficiently in homes, orchards and gardens than manual lawn mowers. The remote control lawn mower avoids workers from being in an unsafe environment for mowing grass and away from dangers such as snakes, spiders, insects, etc

6) Easy Maintenance:
  Robotic lawn mowers have a long lifespan and low maintenance costs, and parts can be easily replaced as needed.

7) Easy to Handle and Store:
  The weight is only 100 kg. With a battery spare, the mower can be moved without starting the gasoline engine.

8) Applications:

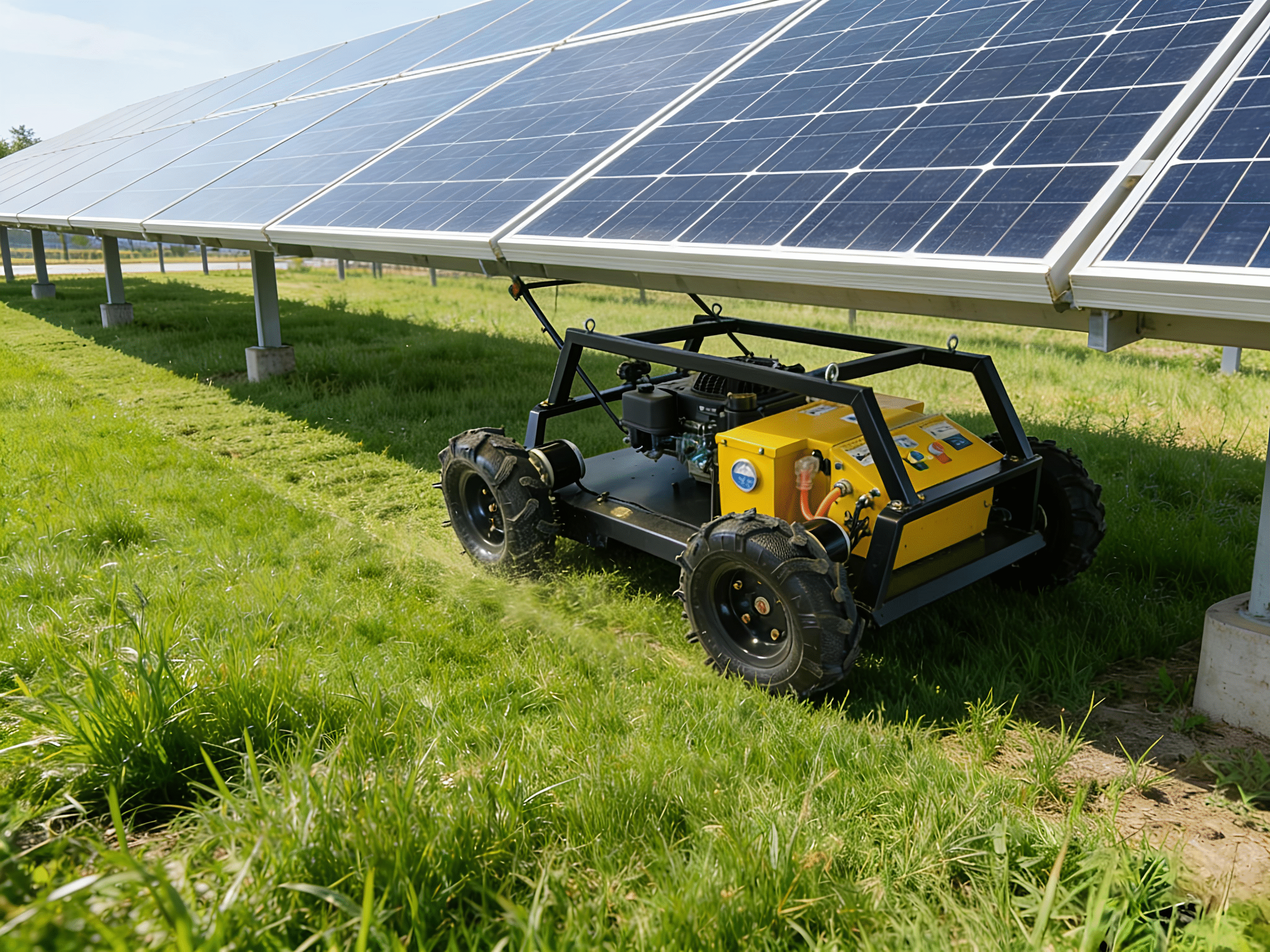

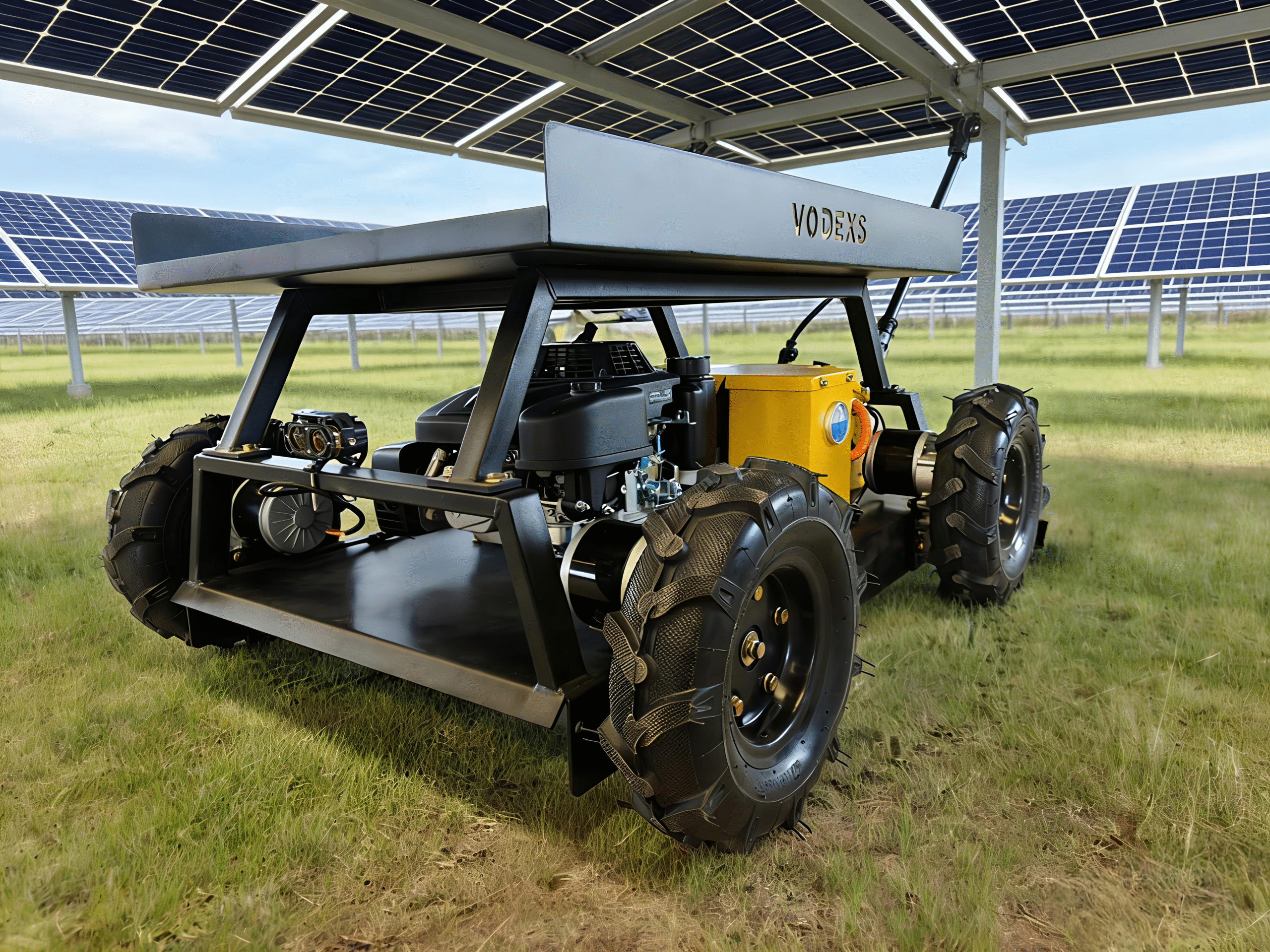

  It is widely used in villa lawns, football fields, hillsides, residential areas, greenhouses, photovoltaics, orchards and gardens.

9) Optional components:

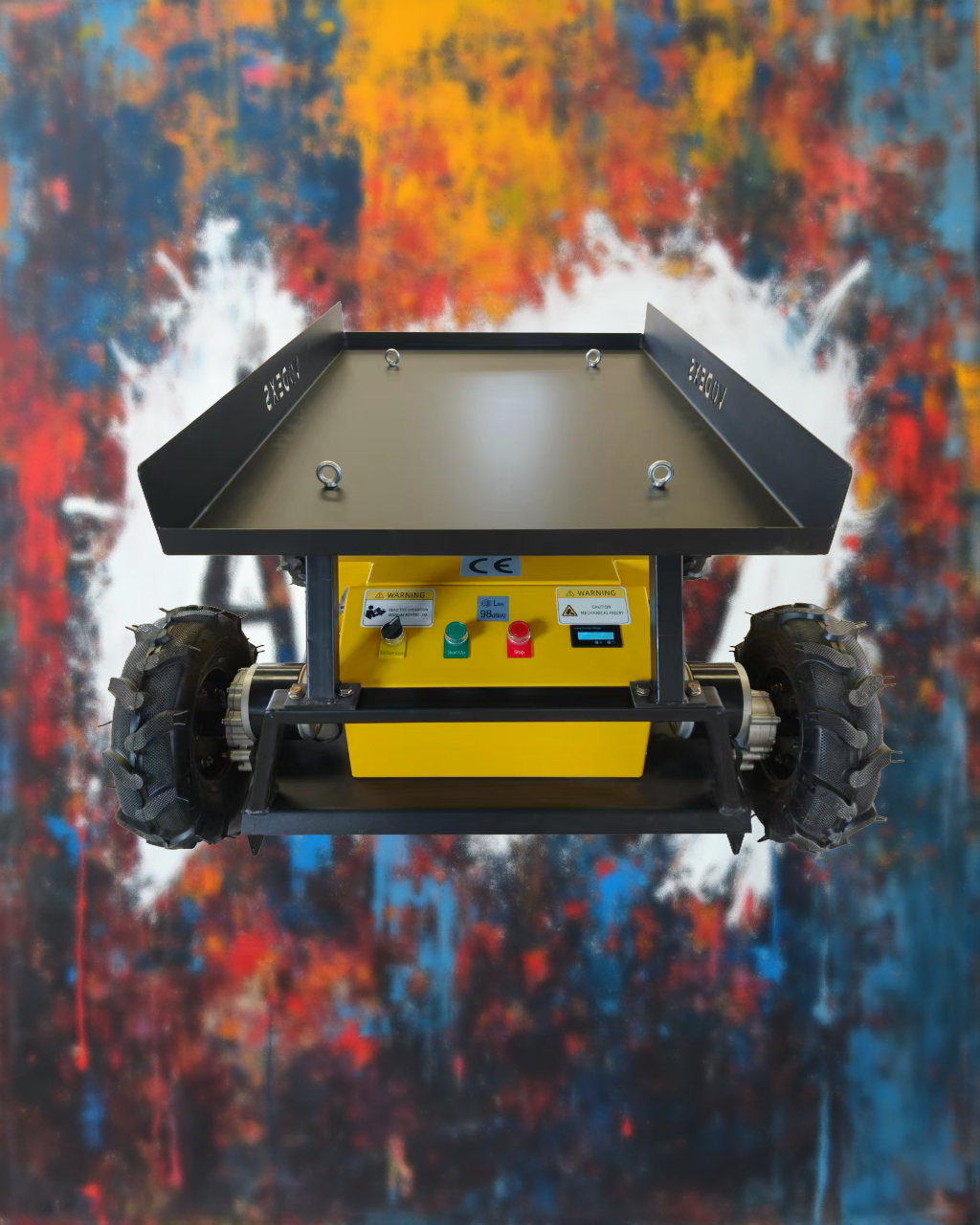

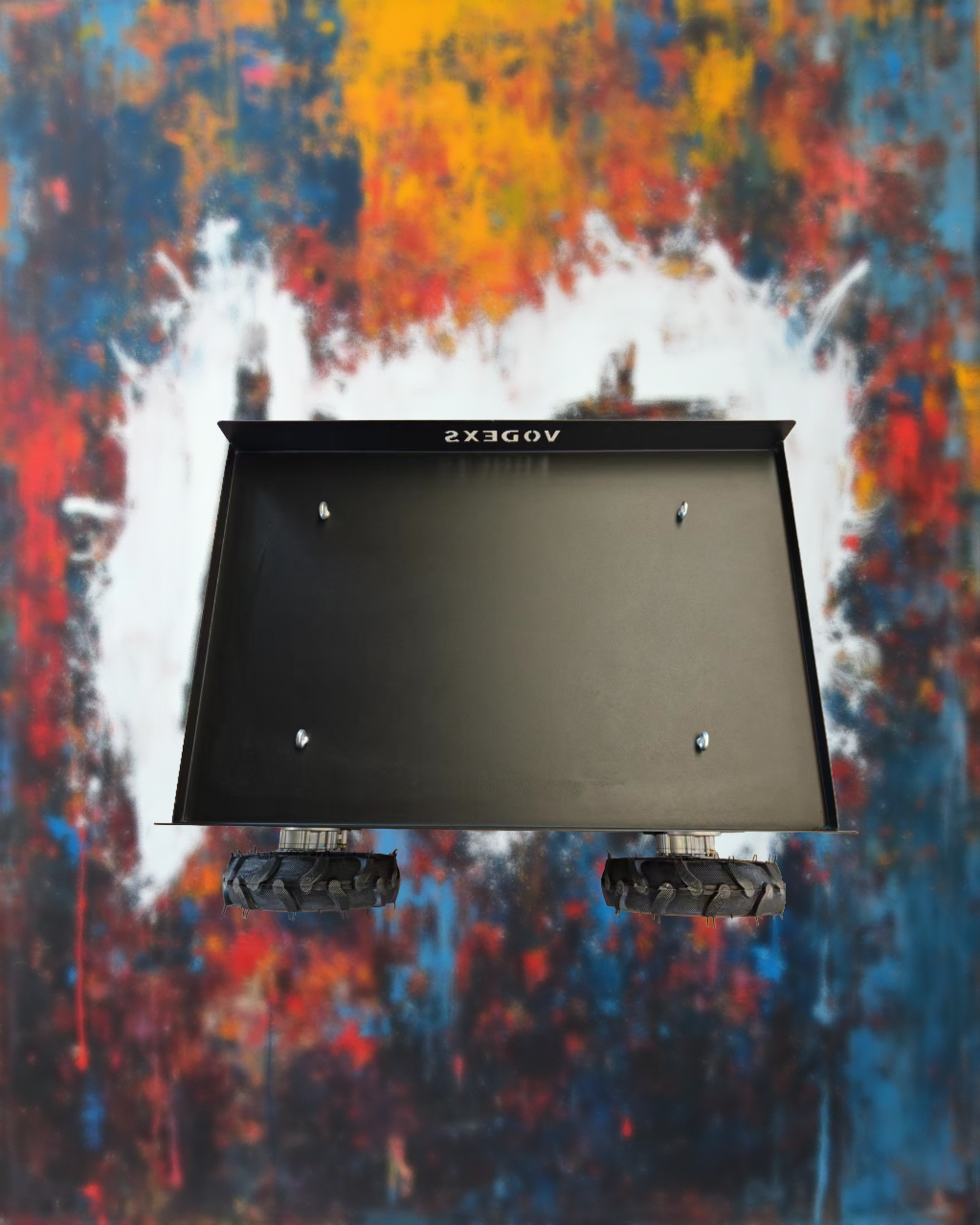

  Remote control one-key start to shut off the engine, mechanical lifting ring, four-mode high beam, engine timer, forest fire prevention electric fire extinguishing system, inclinometer, industrial remote control with voltage feedback and 500 meters remote measurement, double blade cutting system, one-key stop emergency stop, anti-rollover transport platform, engine fuel filter.

10) Dealer comes with motor commissioning application

Specification:

Model:   VDML-600
Cutting width:   600mm
Walking speed: 0-6km/h
Working degree:  0-25°
Remote control range:  200m / 500m
Mowing efficiency：21.43minutes /11.79minutes（667 square meters）
Mowing height：67/47/27mm
                          80/60/40mm

Engine：

Brand:   Loncin
Fuel type:   gasoline
Engine type:   single-cylinder, air-cooled, four-stroke, OHV
Power/emissions:   4.5Kw/224cc
Start method:   electric start
Lubrication system:   splash
Emission standard:   Euro5/EPA
Fuel tank:   1.4L
Oil capacity:   0.5L
Working time:   2h (full fuel)

Traveling motor：

Motor type:  brushed electric traction
Voltage/Power:  24V/350W
Generator:  28V 1500W
Battery:  24V 12Ah
Machine Size: Inflatable tire 1020*905*405/500/590mm
                      tubeless tire   1080*965*430/525/615mm
Machine Weight: 102.5kg
Package Size: 1080*965*640mm
                     1140*1025*665mm
Gross Weight: 132kg
